Seien Sie immer mit Produktqualität streng
und seien Sie für Kundendienst verantwortlich
|
Produktdetails:
Zahlung und Versand AGB:
|
| Marke: | Kehao | Teilnummer: | CBT-F420-ALΦ |
|---|---|---|---|
| Standard- oder nichtstandardisiert: | Soem-Standard | Farbe: | Silber |
| Produktname: | Zahnradpumpe | Kompatible Ausrüstung: | KIPPLASTER /FORKLIT /CRANES |
| Gewicht: | 3.5kgs |

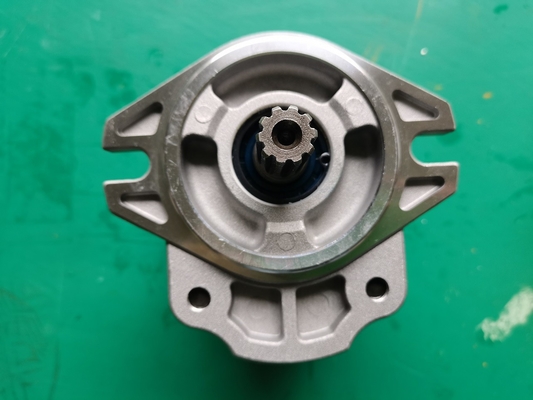

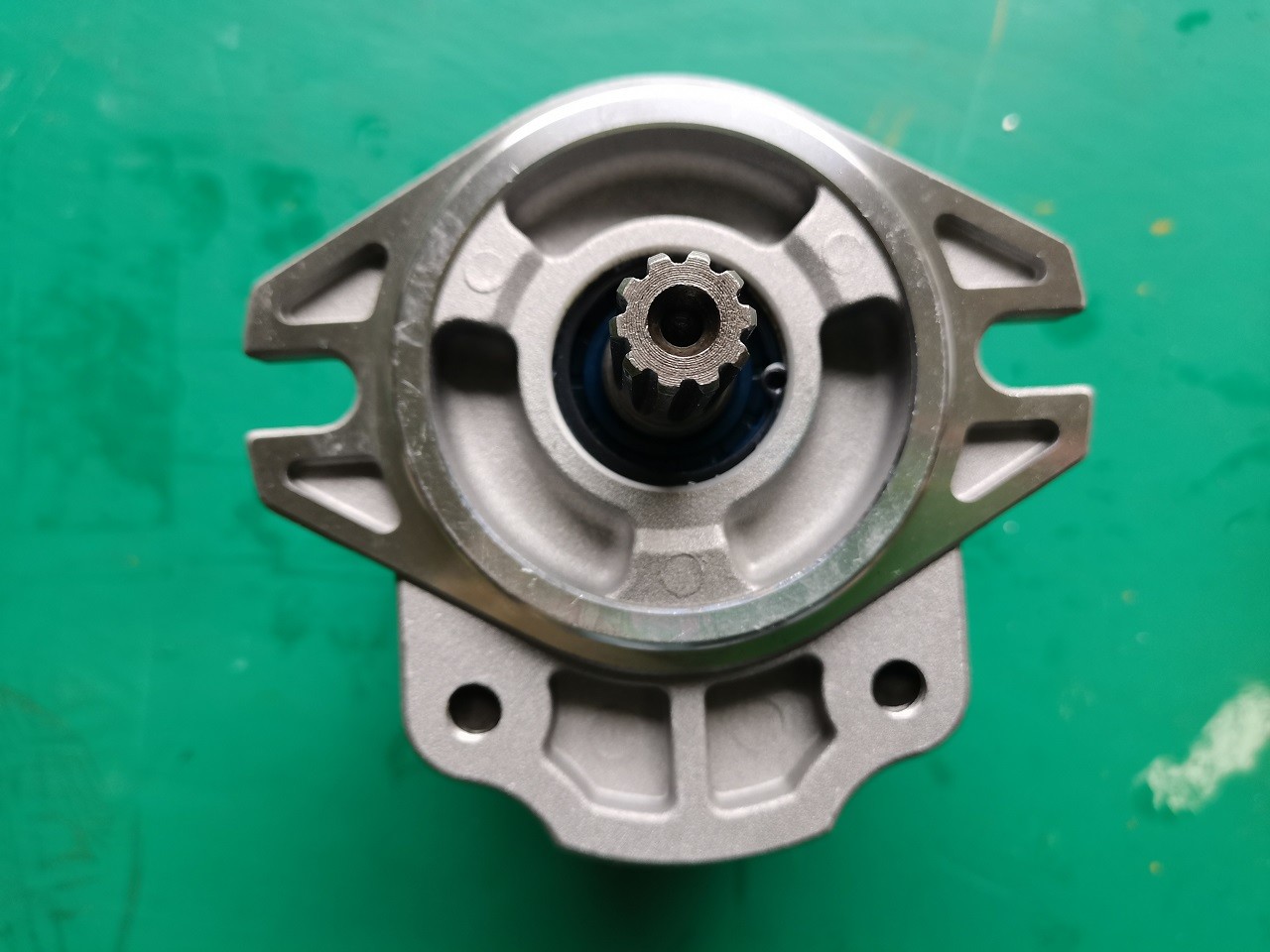

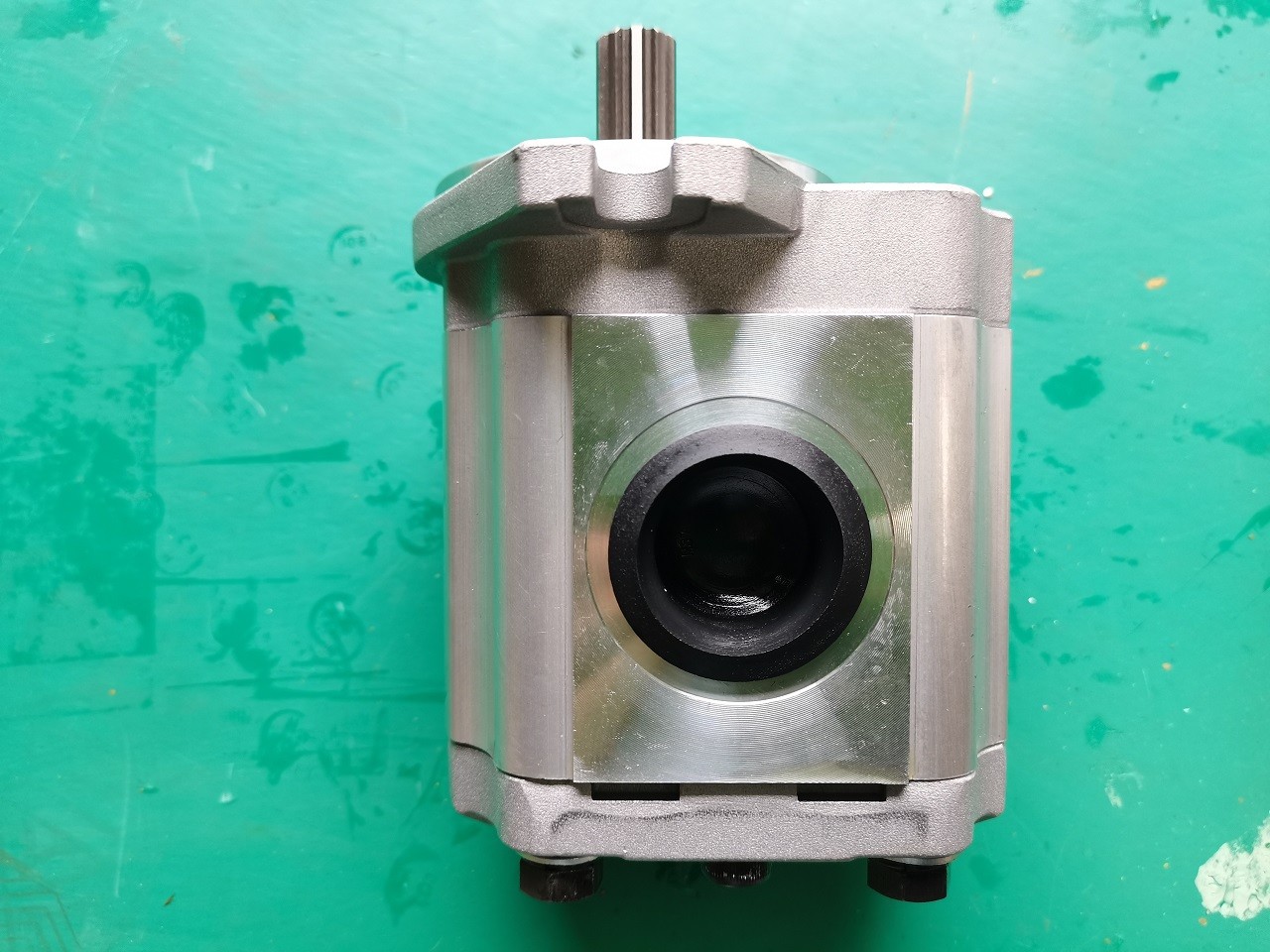

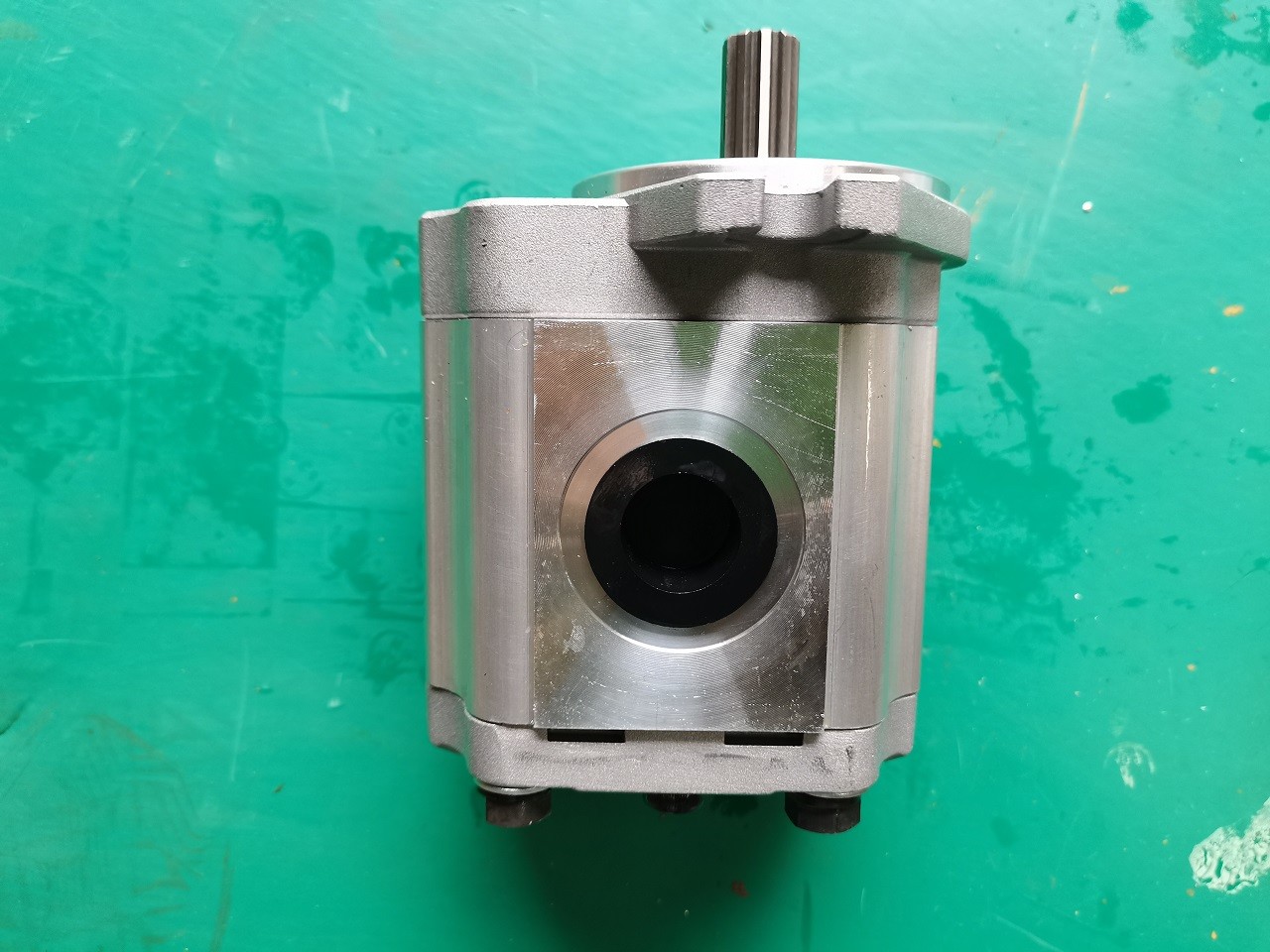

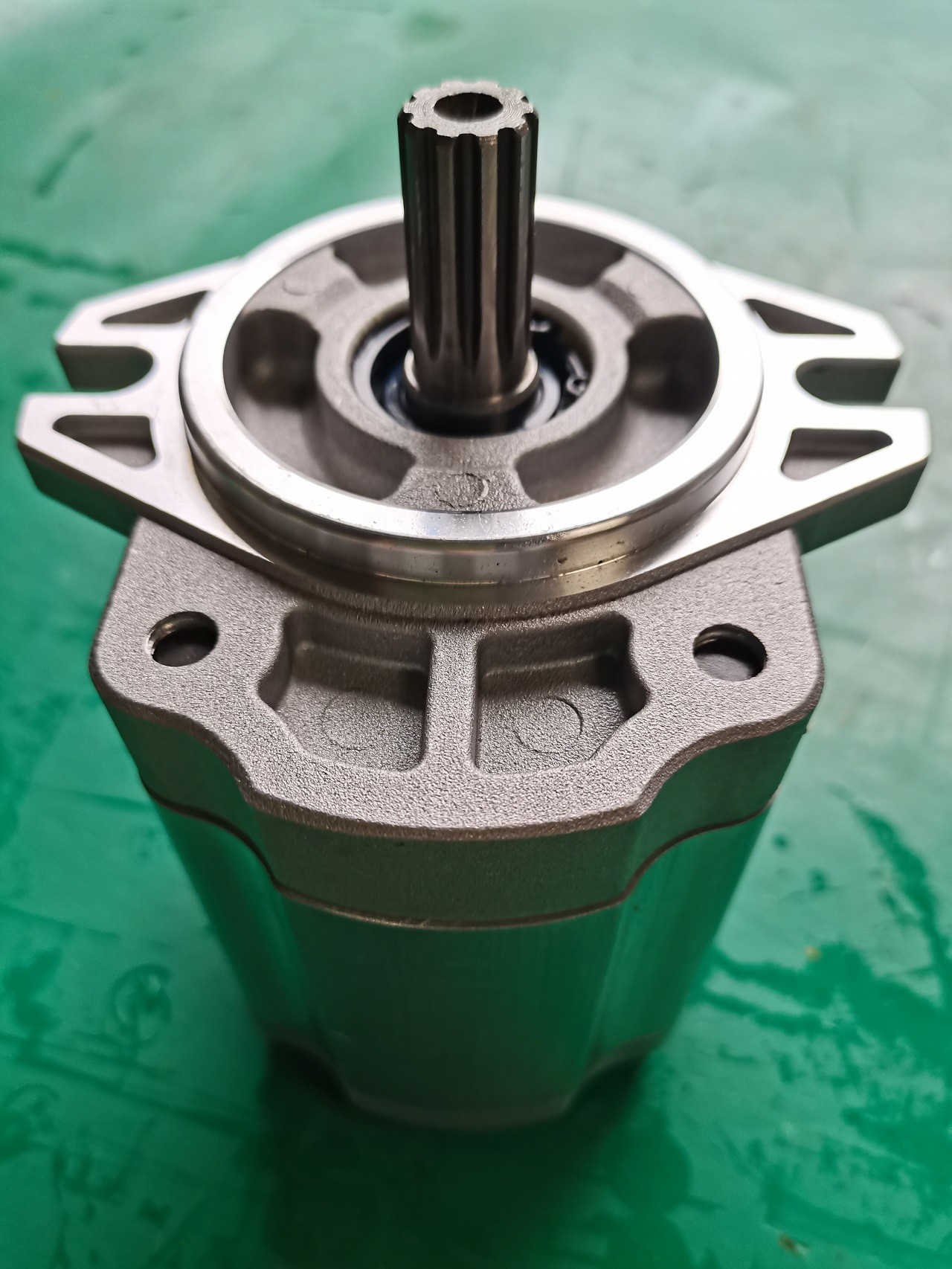

CBT-F420-ALΦ CBTseries aluminum gearpump for DUMP TRUCKS /FORKLIT /CRANES with high quality
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
| CBT系列series | 公称排量Normal displacement(ml/r) | pressure(MPa)压力 | Speed(r/min)转速 | volumetric efficiency(>%)容积效率 | Weight(kg)重量 | |||
| Rated 额定 | Max.最高 | Min.最低 | Rated额定 | Max.最高 | ||||
| CBT-F410-ALΦ9 | 10 | 20 | 25 | 400 | 2500 | 3000 | 92 | 3.1 |
| CBT-F412-ALΦ9L | 12 | 3.3 | ||||||
| CBT-F416-ALΦ | 16 | 3.4 | ||||||
| CBT-F416-ALΦ9L | 16 | 3.4 | ||||||
| CBT-F416-ALΦL | 16 | 3.4 | ||||||
| CBT-F420-AL10ΦR | 20 | 93 | 3.5 | |||||
| CBT-F420-ALΦ | 20 | 3.5 | ||||||
| CBT-F420-ALΦL | 25 | 3.5 | ||||||
| CBT-F425-ALX13 R | 25 | 3.7 | ||||||
| CBT-F425-ALX13L | 25 | 3.7 | ||||||
| CBT-F425-ALΦ9L | 25 | 3.7 | ||||||
| CBT-F432-AFΦL 10T 铝 | 32 | 4 | ||||||
| CBT-F432-AL | 32 | 4 | ||||||
| CBT-F436-ALΦ9L | 36 | |||||||
| CBTL1-F416F416-ALΦ | 16/16 | |||||||
| CBTL-F416+F416-AF10ΦR | 16/16 | |||||||
| CBTL-F423F416-AL11 | 23/16 | |||||||
| CBTSL-F416F416F410-ALΦ | 16/16/10 | |||||||
| part number | Compatible equipment | Weight(kgs) | |
| 705-21-32050 | BULLDOZERS D85A, D85E, D85P | 6.32 | |
| 705-21-31020 | D31A, D31AM, D31E, D31P, D31PG, D31PL, D31PLL, D31Q, D31S, D31SM, D37A | SAL2-36 | |
| 705-21-28270 | WHEEL LOADERS WA380Z | SAL (1) 25 | |
| 705-12-28010 | GD300A, GD605A, GD655A, GS360 | 4.58 | SAR25 |
| 705-11-38010 | D60P, D65E, D65P, D70LE, D85E, D85ESS | 13.242 | SAL(3)080 |
| 705-11-34110 | CRANES LW160 | SAL5 SAL45 | |
| 705-11-34100 | WHEEL LOADERS 530, 530B | 6.98 | SAL50 |
| 705-11-33011 | GD605A, GD655A, WA100, WA100SS, WA100SSS, WA120, WA120L, WR11, WR11SS | 6.56 | |
| 705-11-30110 | BULLDOZERS D455A | 6.181 | SAL40 |
| 705-11-26040 | WHEEL LOADERS WA50 | 4.3 | SAR25 10T |
| 705-11-26010 | EXCAVATORS PW150 | SAL20 10T | |
| 704-56-11101 | GD31RC, GD600R, GD605A, GS360 | 11 | |
| 704-12-26120 | GD605A | 6.5 | |
| 704-11-38100 | D53A, D53P, D53S, D58E, D58P | 13.707 | |
| 23A-60-11102 | GD511A | 8.65 | |
Contact us if you want to know more,thank you very much!
